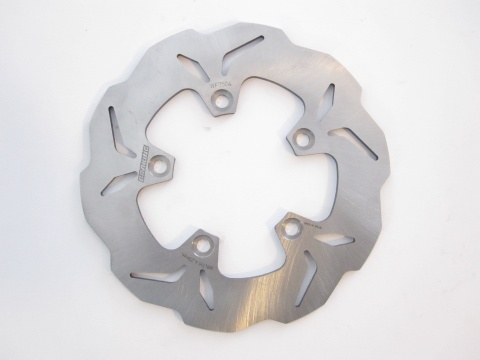

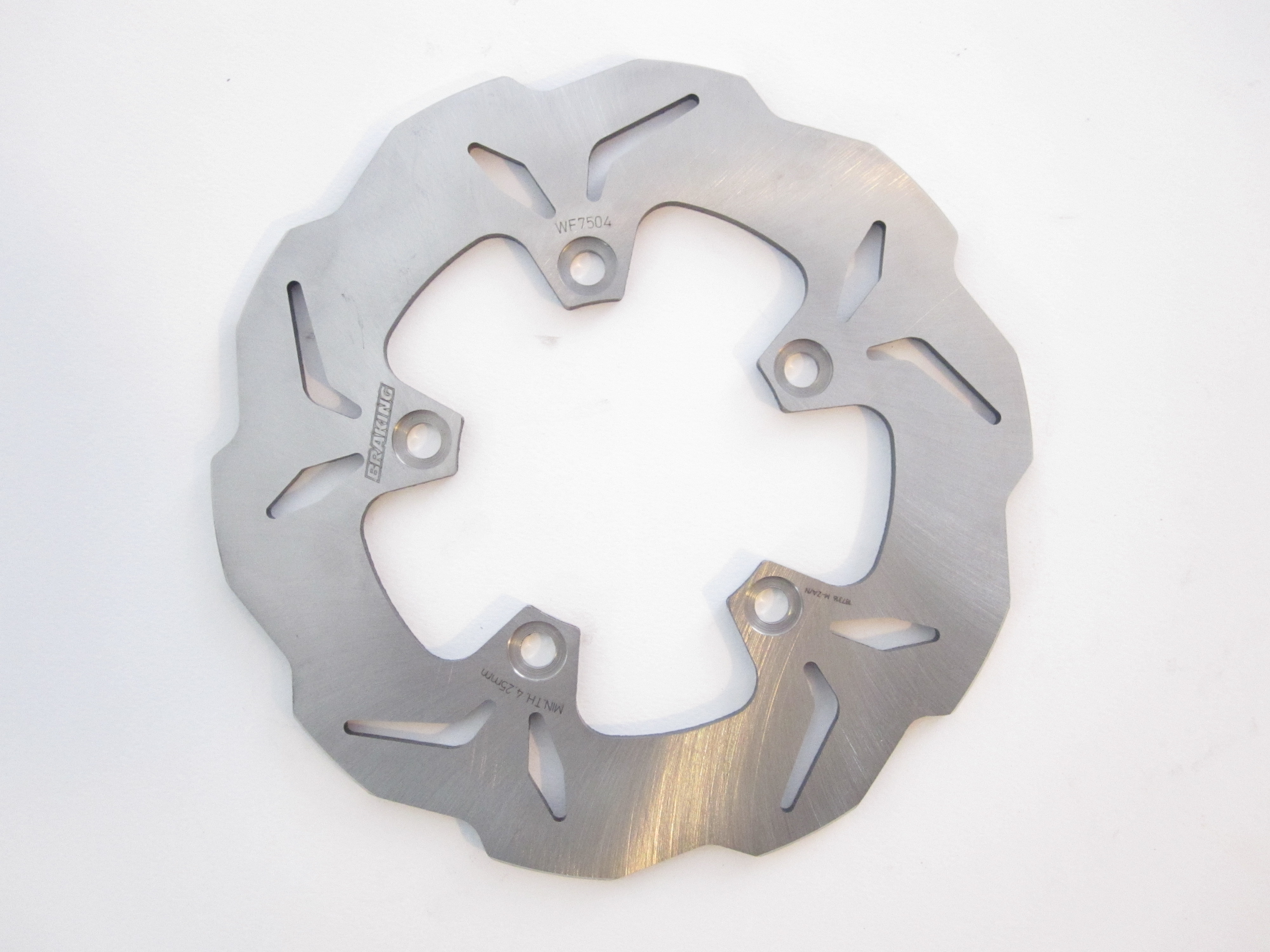

XSR900(15-21) Braking wave disc fix Rear

TYPE ONROAD DISK
SERIES W-FIX
DESCRIPTION Traditional WAVE® fix disk for both front and rear applications.
Replacement of original OEM disk.
PART NUMBER WF71XX front disk - WF75XX rear disk -
TECHNICAL FEATURES AND
BENEFITS
more braking grip > highly reactive
less weight > better handling
high heat dissipation > stable power in all conditions
HOW DOES IT WORK? Outer and inner diameter of the disk have a non-round design that
enables better radial expansion of the rotor under extreme heat
conditions. Moreover piercing holes are replaced by edges specifically
designed to grow brake pad regeneration process.
USE ROAD
ACCESSORIES CM55 - CM56& SM1 PADS
TX - RX LINES & FITTINGS
WARNING Always combine new BRAKING pads with the new disk.
Run in as per mounting instructions.
Outer Diameter  245,00
Braking Surface Height  32,30
Inside Diameter   132,00
Thickness   5,00
No. Of Holes   5,00
Bolt Pattern   150,00
Holes Diameter   10,50
Holes Type  Countebore
Floating   Fixed
Outline   Wave
Outer Ring Type  Lightening holes
Finishing  Painting
Carrier Surface Treatment  Nothing
