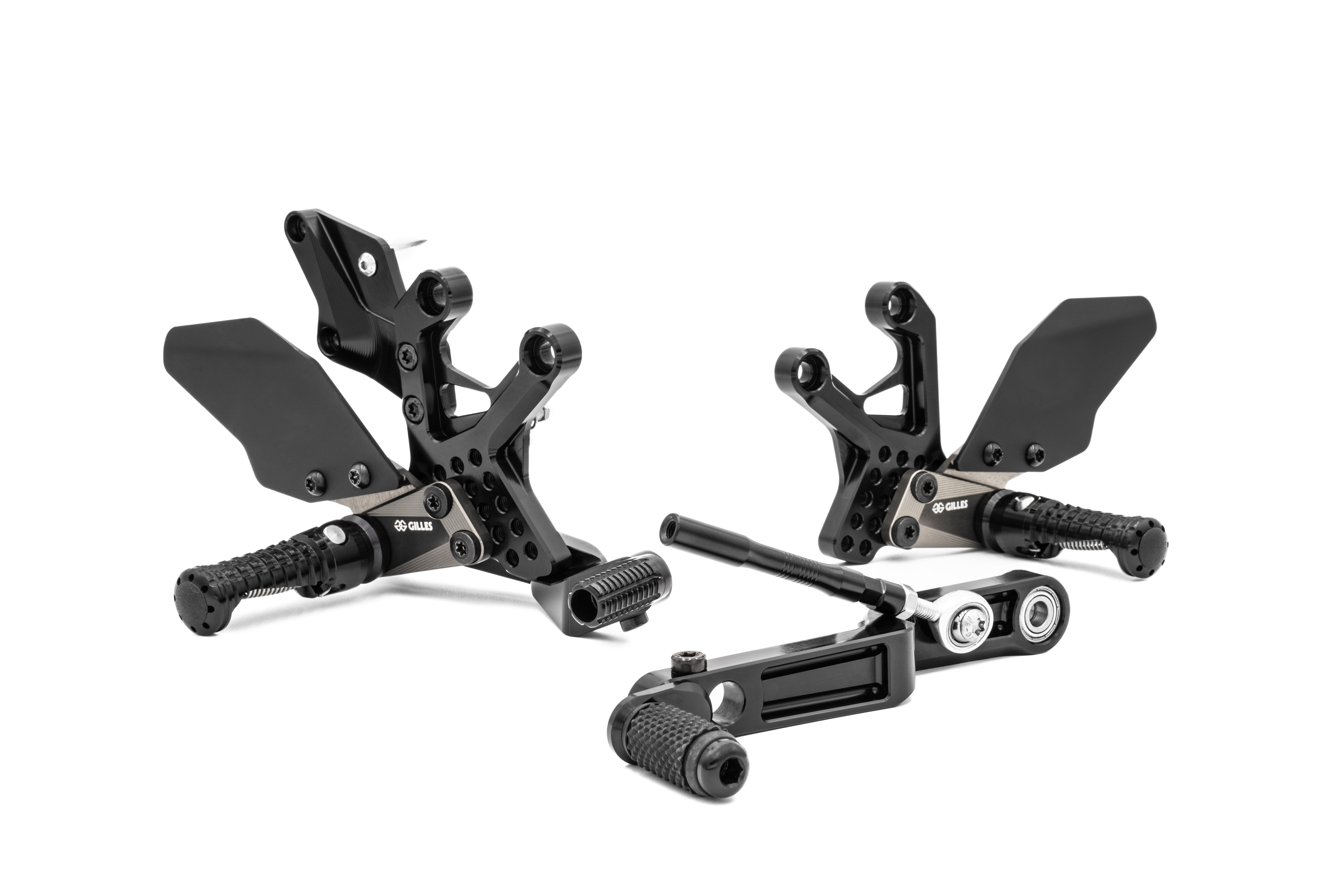

GSX-8S(23-24)Gilles Tooling adjustable rearset AS31GT3

DESCRIPTION

KEY FACTS



- MULTIVARIABLE DETENT SYSTEM.



- BACKLASH-FREE BRAKE AND SHIFT LEVERS WITH DOUBLE BALL BEARINGS.



- CUT-OUT FOR ULTRA-LIGHT WEIGHT.



- ADJUSTMENT RANGE = SEE ADJUSTMENT TABLE.



- SHIFTING SCHEME = ONLY NORMAL SHIFTING POSSIBLE.



- EXTRAS = VARIOUS ADJUSTMENT OPTIONS: FOOTREST, SHIFTING TRAVEL, PEDAL LENGTH.



- MATERIAL = HIGH-STRENGTH ALUMINUM 7075.



- WEIGHT = 567g left, 629g right.



- HOMOLOGATION = TÜV PARTS CERTIFICATE.



- SPARE PARTS SUPPLY = WE OFFER A SPARE PARTS SUPPLY FOR THIS PRODUCT.







Multivariable footrest system



Our multivariable footrest system is the result of innovative engineering and offers a versatile solution for every rider. It enables individual adjustment of various parameters such as footrest height, shift travel and pedal length to ensure an optimal riding experience. This system gives you the flexibility to configure your bike according to your personal preferences and requirements.







Backlash-free brake and shift levers with double ball bearings



Experience smooth and precise control with our double ball bearing mounted brake and shift levers brake and shift levers that ensure optimum performance on every ride.







Milled out for ultra-light weight



Our AS31GT3 features a special cut-out that not only reduces weight but also improves the structural integrity of the component. The targeted removal of material minimizes the overall weight of the system, resulting in improved agility and handling of your motorcycle without compromising on strength.

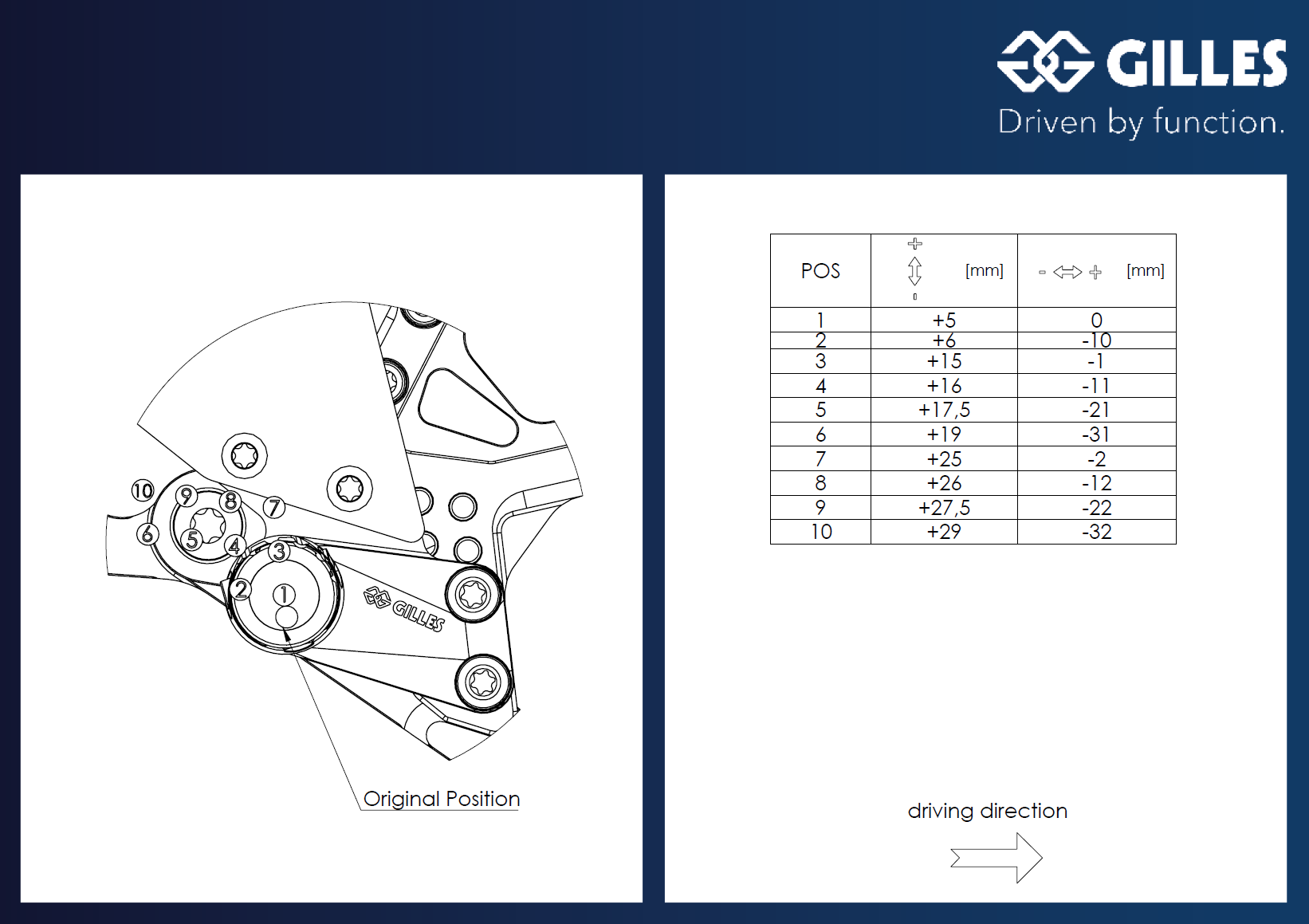

ADJUSTMENT RANGE



Optimize your riding experience and performance with our versatile adjustability.See the adjustment table for details of the adjustment options, up to 19 mm upwards and 32 mm to the rear.







SHIFTING SCHEME



This AS31GT3 is designed for normal shifting and enables precise and responsive operation of the shift lever. Due to the special design, only normal shifting is possible, which ensures intuitive handling and a smooth shifting process.







MATERIAL = High-strength aluminum 7075



Our footrest system is made from high-strength 7075 aluminum, a material known for its exceptional strength, durability and lightness. This high-quality material offers an optimal balance between weight and strength, resulting in improved performance and longevity. By using 7075 aluminum, we are able to offer a peg system that meets the highest demands of demanding riders while offering low weight and outstanding robustness.







Weight



At just 567g on the left and 629g on the right, our system minimizes unnecessary unnecessary weight and maximizes performance.







HOMOLOGATION = TÜV parts certificate enclosed



Our footrest system is homologated with a TÜV parts certificate, which confirms compliance with all relevant safety and quality standards. This parts certificate is enclosed with the system and gives you the certainty that it meets the strict requirements of road traffic regulations. With this homologation, you can be sure that our footrest system not only offers first-class performance, but also meets the highest safety standards.







Spare parts supply



All individual parts can be ordered for most of our products. Use the fitting instructions to identify the parts you need, and enter the part number directly into the search field.







Enhance your riding experience and safety with our innovative footrest system and unleash the full potential of your machine
