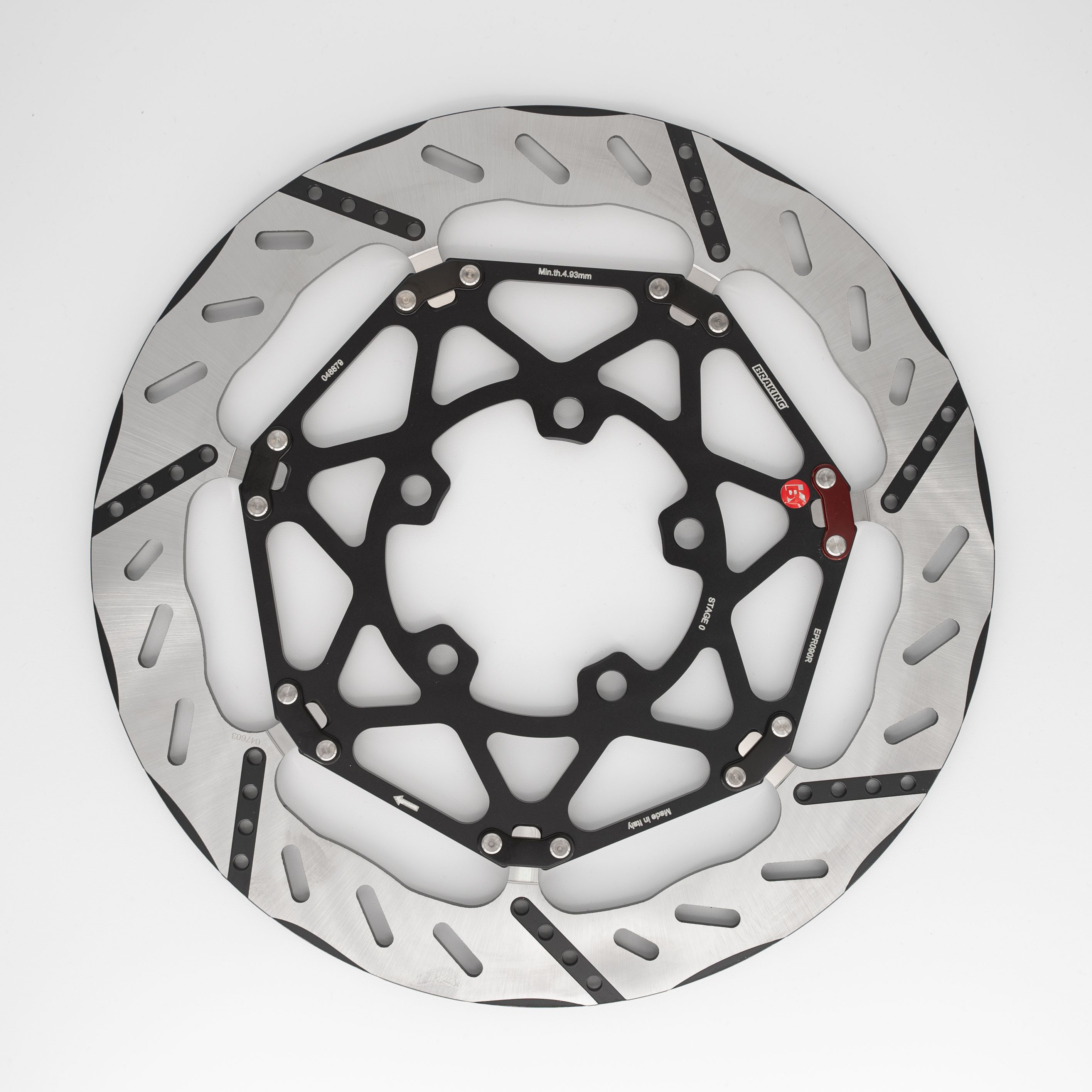

ZX-6R(23-24)Braking EPTA brake disc wave floating Front-L

DETAILS

Hard anodized hub in aluminium AL7075 hard anodized (30μm) .

Rotor in stainless steel induction hardened .

Thickness 5,8 mm  .

EPTA disc floatation mechanism, with Grooves with ventilation holes for better cooling of interface zone.

Optimized lightening holes to avoid vibration onset  .

Straight  3mm-thick  crests protruding  from Wave shape to outer diameter of the disc, to form a radiating area untouched by the pads but with higher thermal inertia than the rest of the disc. The radiators help heat dissipation, to obtain  36°C less maximum temperature with respect to standard EPTA.



Disc Outer Diameter 310.00

Disc Inner Diameter 80.50

Number of disc holes 5

Dimensioni Oem size

Position Front
