GSR750(5) SW-Motech X-Grip-Kit for large smartphones

Universal X-Grip Kit for large smartphones



This versatile kit is suitable for securely fastening a large smartphone or smartlet to (almost) any motorcycle. The X-Grip clamp captivates with its versatility - it provides secure grip for smartphones and can be flexibly adjusted on a RAM arm with the 1" adapter ball. The rubber fingers of the clamp arms have the smartphone firmly in their grasp and guarantee a clear view and access to the device at the same time. The Universal Kit included in delivery offers a variety of different attachment options. The included 1" ball can be mounted on an M6 or M8 thread, on the mirror thread holder or with a mounting clamp. The mounting clamp is designed for handlebars with a diameter of 22.28 mm or 1" in. The socket arm we developed is pivotable in two axes up to 90° or 45° and facilitates positioning in the cockpit - this way the display is always in view without obscuring the view of the instruments.

Incl. 1" ball, socket arm, X-Grip IV clamp.Features of the RAM X-Grip IV clamp

Versatile holder with clamping arm and 1" adapter ball

Rubberized support finger for secure hold

A rubber mount additionally secures the smartphone

For smartphones with a width of 4.4 to 11.4cm

For smartphones with a maximum thickness of 2.22cm

Material: Stainless steel / Composite plastic

Color: Silver / Black

Mounting

Balls and pivoted socket arm allow individual positioning

Socket arm is on two axes and pivotable up to 90° or 45°, length: 55 mm (2.2"), for support balls ø 24 - 25.5 mm (approx. 1")

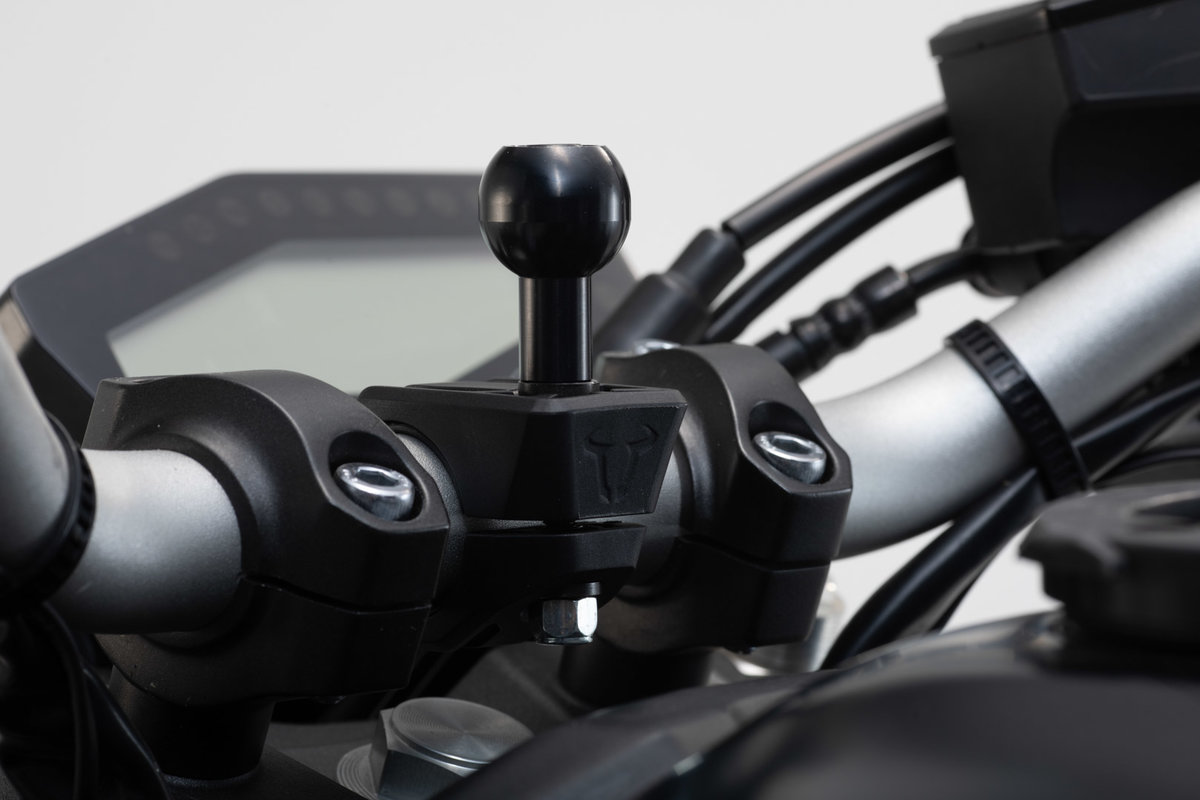

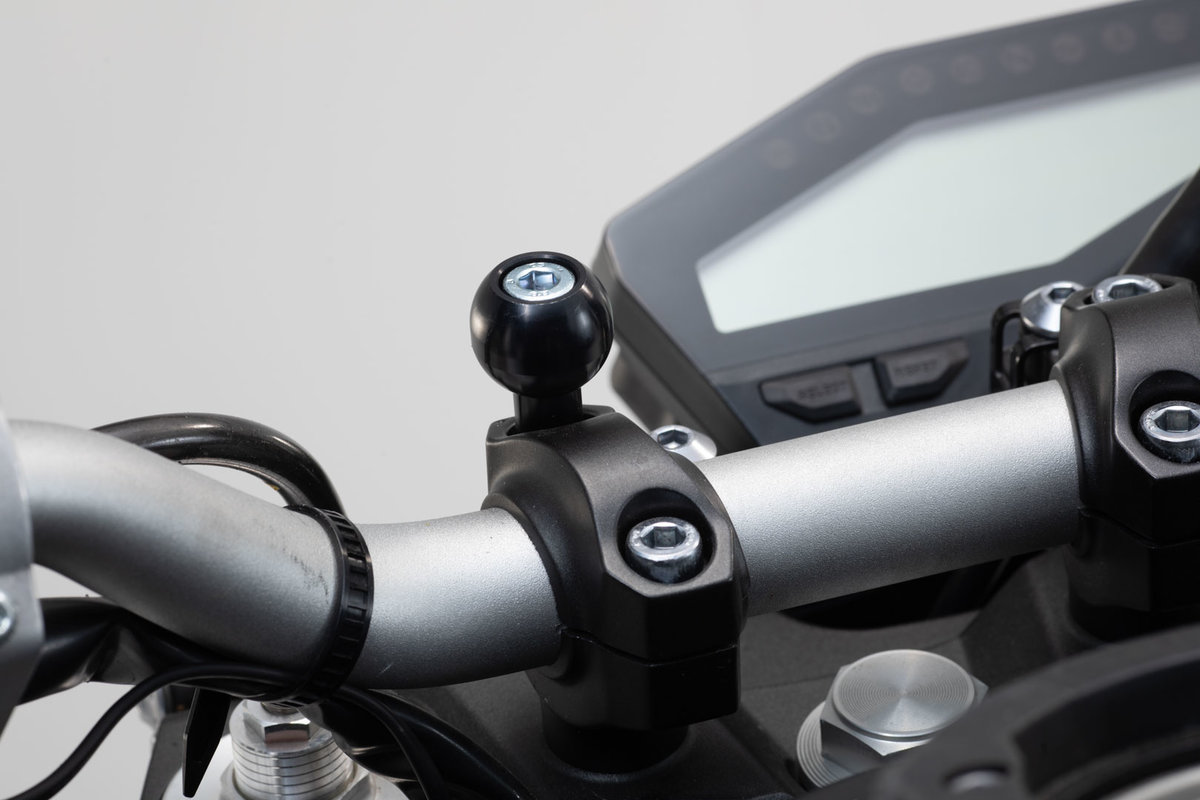

Different mounting variations: 1" ball can be mounted on an M6 or M8 thread, on the mirror thread holder or with a mounting clamp

Mounting clamp for handlebars with a diameter of 22.28 mm or 1"

No additional accessories are required for the installation

Note

Particularly slim devices (with minimum width of 4.4cm) must be taller than 14.6cm.

The use of a waterproof protective case is recommended. The smartphone with protective case must not exceed the specified maximum width and thickness.

Included in delivery

RAM X-Grip IV clamp for large smartphones

Rubber mount

Socket arm

Mounting clamp with rubber inserts

Ball with M8 thread and M6 converter

Mirror thread holder

Mounting material

Mounting instructions
