CBr500R SW-Motech TRAX ADV aluminium case system 45L

TRAX ADV Aluminum Pannier System (silver) for Honda CB 500 X (16-)

The tough TRAX ADV aluminum cases accept any challenge: Embossed designs add to the stability of the welded aluminum walls with a strength of 1.5 millimeters. The removable lid with anodized aluminum carrying handle and quick release fastener allows easy loading and unloading of the waterproof motorcycle cases. A lateral chamfer on the outer case edge provides ground clearance while cornering. With TRAX ADV aluminum pannier system you are ready for adventure. The complete system consists of the following components: TRAX ADV side cases, EVO carriers, adapters and lock cylinder set at an attractive price. Carrier and case configuration have been carefully selected to complement the motorcycle models tail geometry and exhaust system.

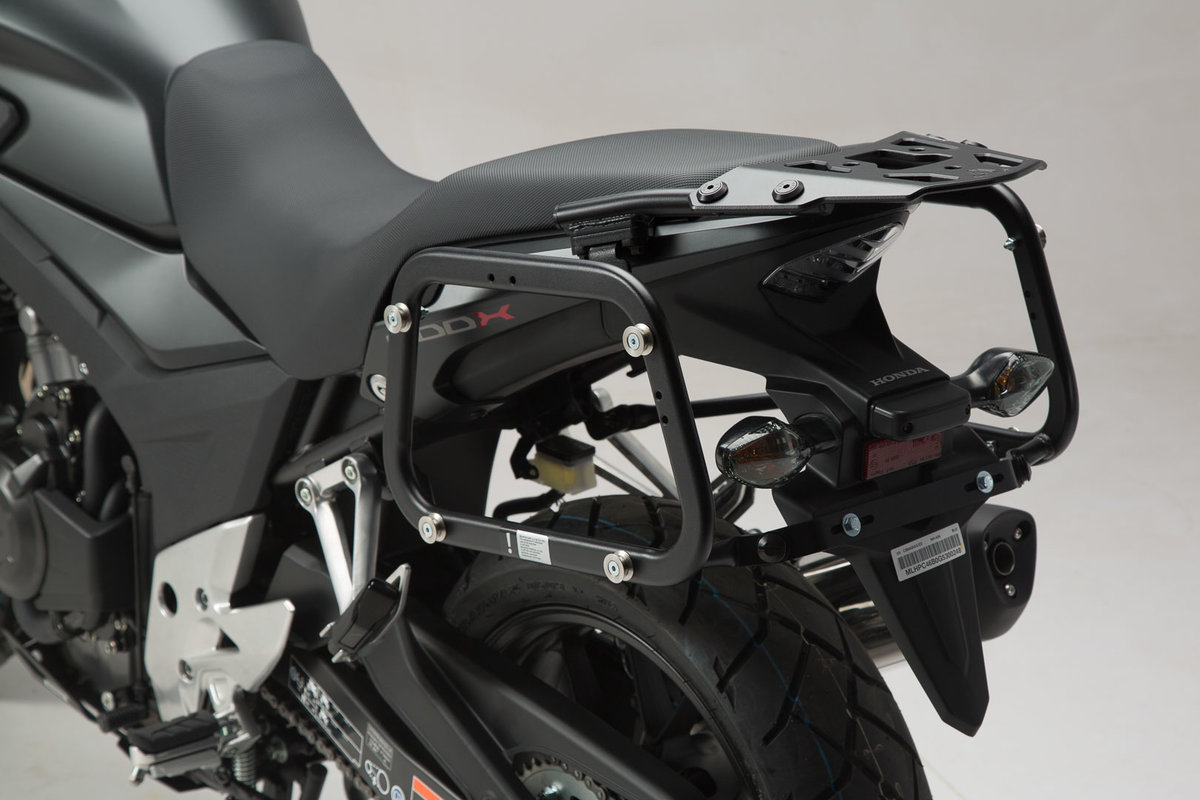

Features EVO carrier:

Removable side carrier

To mount and demount within seconds at barely visible fixing lugs, due to quick fasteners

Made of oval tube, carefully constructed position close to the motorcycle

Can be adapted to hold cases from different brands

Highly functional and firm tubular steel construction

Sturdy steel tube, black powder-coated surface

Rear width with mounted side carriers (without cases): 440 mm

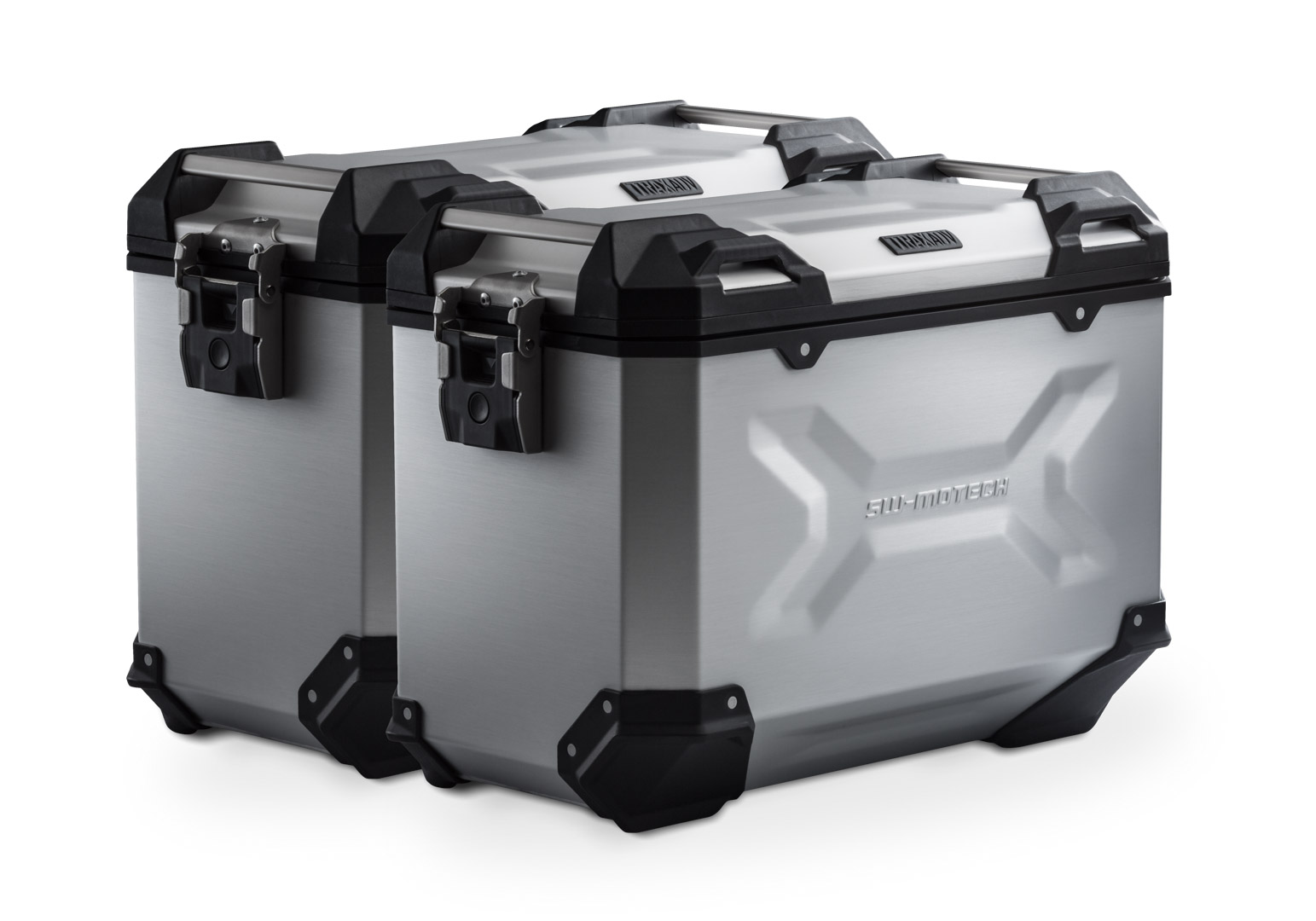

Features TRAX ADV Side Case:

Tough and waterproof aluminum side case

Outer chamfer for best ground clearance while cornering

Fiber-reinforced plastic corners

Embossed designs and welded body provide high stability

Robot welding and punch riveting prevent moisture ingress

Cases are anodized (silver design) or powder-coated (black design) against oxidation and abrasion

Easy-to-clean surface

Completely removable lid with quick release fastener

4 tie-down points, integrated into the lid corners (e.g. for tent or expansion bag)

Stainless steel latches, anodized aluminum handles

Pre-installed mounting rails also serve as a strengthening frame

Exchangeable sealing gasket

Easy mounting on all EVO carriers

Adaptation kits for mounting on carriers from other brands available

Available in two sizes and two colours

Capacity: TRAX ADV L: 45 l / TRAX ADV M: 37 l

Dimensions: 49 x 28 x 37 cm / 49 x 23 x 37 cm

Weight: 5.4 kg / 5.1 kg

Material: aluminum (wall strength 1.5 mm)

Colour: black, powder-coated interior and exterior or silver, anodized interior and exterior

Included:

TRAX ADV L, side case, 45 l, left, silver

TRAX ADV L, side case, 45 l, right, silver

EVO carrier for Honda CB 500 X (16-)

Adaptation kit

Lid limiter

Lock cylinder set: 6 locks / 2 keys

Anti-theft device

Multitool key chain

Carrying bag

Mounting material

Mounting instructions

Note:

Compatible with ALU-RACK and TRAX ADV topcase engineered by SW-MOTECH
