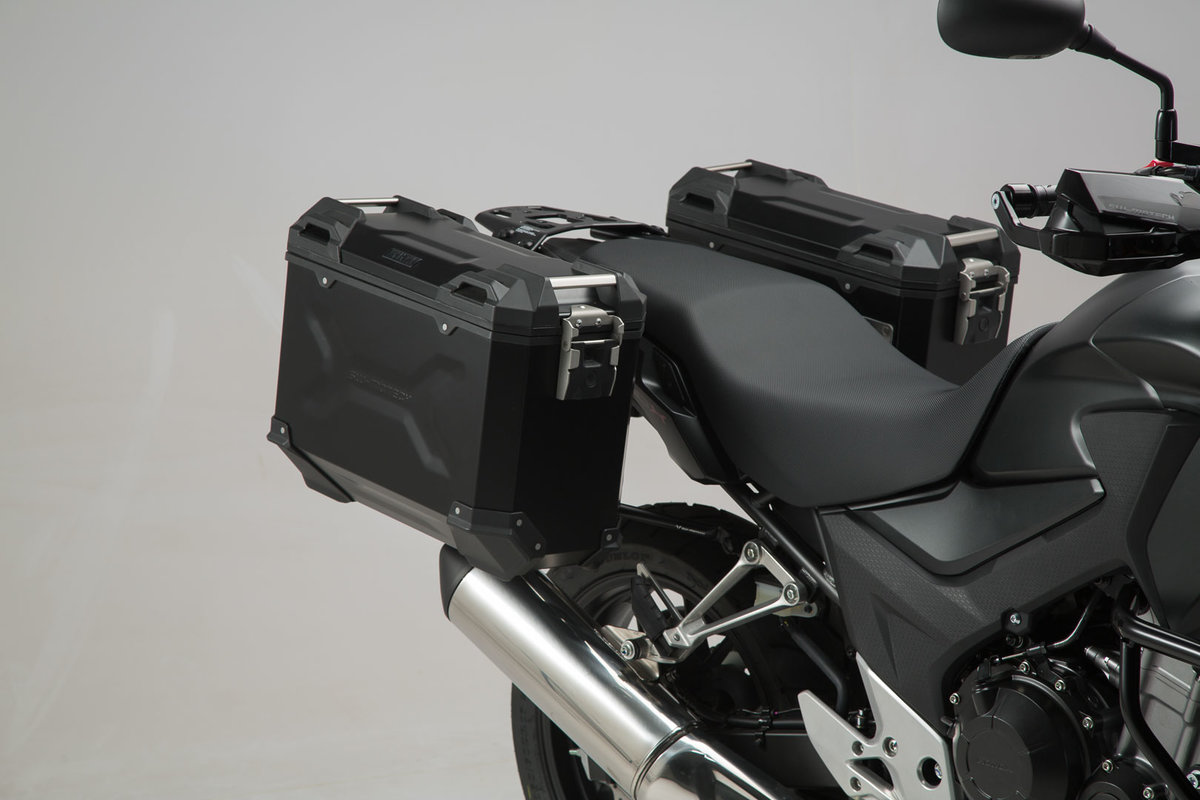

CBR500R SW-Motech TRAX ION aluminium case system 37L

TRAX ION aluminum case system for CB500X, CB500F / CBR500R (-15)



Order, unpack, mount and drive away. The TRAX ION aluminum case system contains everything needed to mount two side cases on your motorcycle: two TRAX ION side cases, two bike-specific EVO carriers, anti-theft protection, matching locks, adapter kit and accessories. The system is available with black or silver cases. The bike-specific carrier and the size of the case are perfectly coordinated to the tail geometry and exhaust system of the motorcycle.



Robustly finished with a body made from 1.5 mm thick aluminum, strengthened with sturdy plastic elements and still a lightweight: the TRAX ION motorcycle cases are the new generation of the popular TRAX EVO series. The TRAX ION aluminum cases were completely overhauled - they are now welded in one piece and therefore waterproof. The companion for trips and adventures of all types wow with their large chamfer for best cornering clearance, their sleek look and a large offering of accessories - and all that at an attractive price.EVO carrier features:

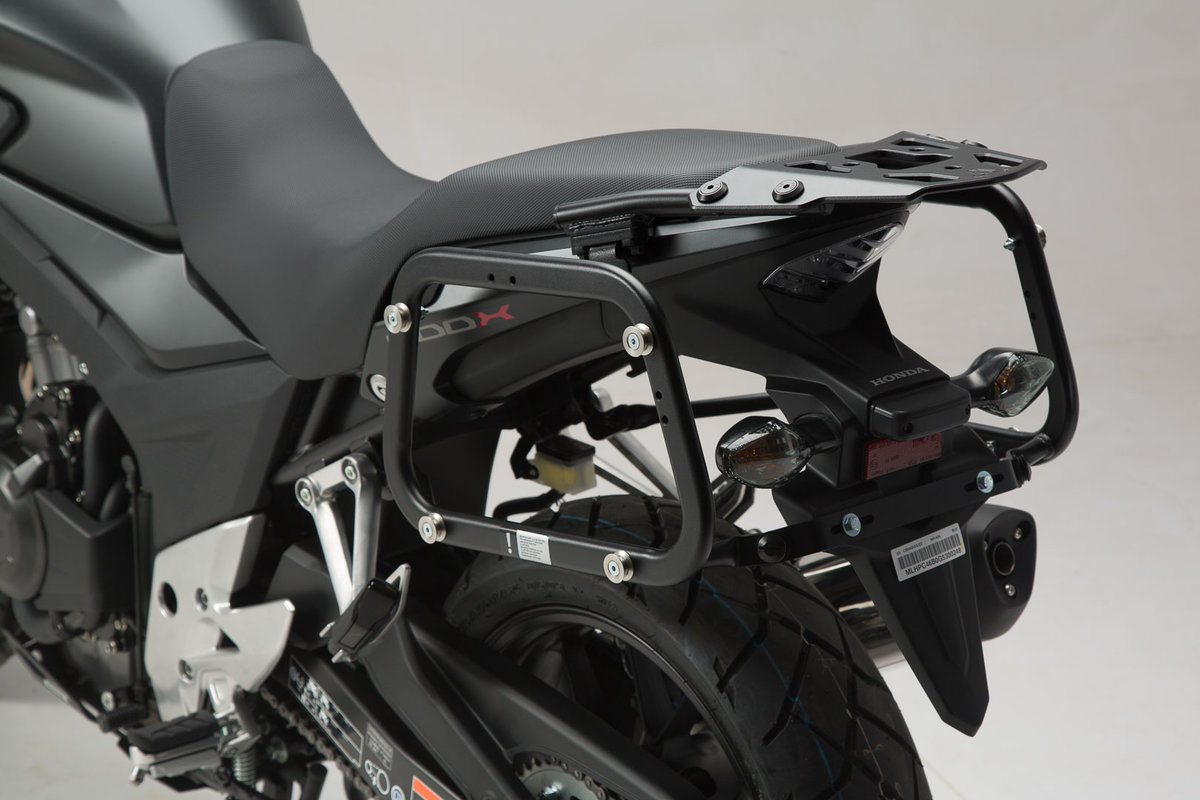

Removable carrier

Attachment and removal within seconds with quick-release fasteners at inconspicuous attachment points

Bike-specific fit, designed to fit close to bike

Also usable with case systems of other manufacturers

High functionality and stability

Indestructible steel pipe, surface: Black powder coating

Width of the bike tail with mounted carrier (without cases): 440 mm

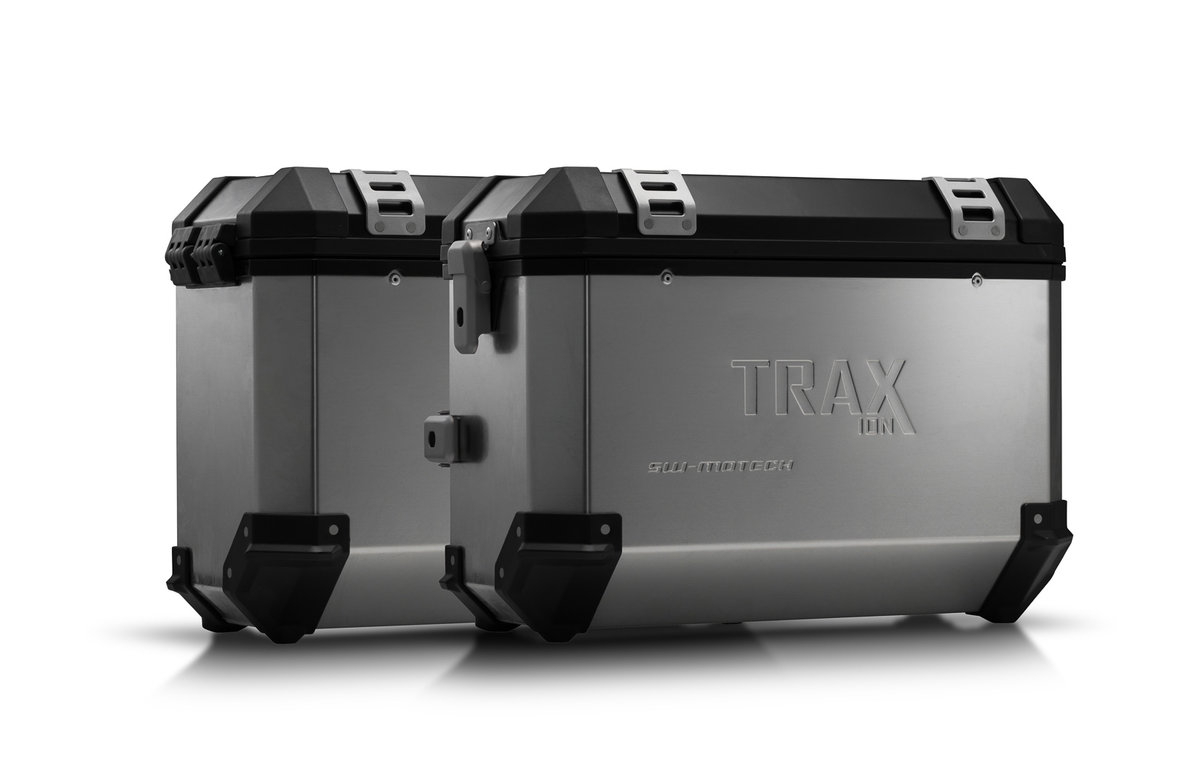

TRAX ION side case features:

Robust & light: Aluminum side case with a wall thickness of 1.5 mm

Beveled side edge for an optimized lean angle when cornering

Additional protection from ground contact thanks to plastic corners

Secure hold with just a grip of the hand on carriers by SW-MOTECH, the latch buckle is also lockable

Waterproof through robot-supported welding, punch rivet technology and interchangeable cover gaskets

Robust stainless steel latch buckles

Fold back cover

4 lashing strap loops on the lid, for ex. for tying down a waterproof accessory bag

Theft protection: Case lid and case can be locked when on the carrier

Extensive accessory offering from padded inner pockets to a passenger backrest all the way to a carrying handle

Available with black powder coating or natural aluminum (silver)

TRAX ION M: 4.7 kg / 49 x 23 x 37 cm / 37 l

TRAX ION L: 5.2 kg / 49 x 28 x 37 cm / 45 l

Tip

Combinable with racks by SW-MOTECH and TRAX ION top cases

Included in delivery:

TRAX ION side case, 37 l, left, silver

TRAX ION side case, 37 l, right, silver

2 EVO carriers for CB500X, CB500F / CBR500R (-15)

Adapter kit for EVO carrier

Lock set: 6 locks / 2 keys

Anti-theft protection for EVO carrier

Key chain: functional tool

2 practical storage bags

Mounting material

Mounting instructions
