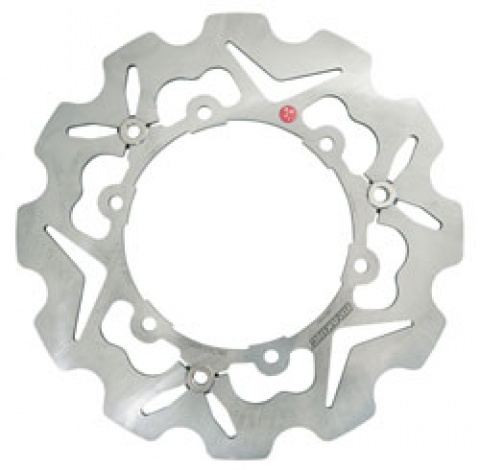

Burgman400(06-16)Braking semi floating disc Front-L/R

BRAKING WAVE DISC SEMI-FLOATING 3 PINS  Front- Left / Right
TYPE : SCOOTER SEMIFLOATING DISK
SERIES : S3
DESCRIPTION : The new semi-floating WAVE® disk
PART NUMBER : S38XXX
TECHNICAL FEATURES AND BENEFITS WAVE® + DIRECTIONAL DISK PROFILE DIRECTIONAL PIN AREA

more braking grip > highly reactive less weight > better handling high heat dissipation > stable power in all conditions
HOW DOES IT WORK?
Outer and inner diameter of the disk have a non-round design that
enables better radial expansion of the rotor under extreme heat
conditions. Moreover piercing holes are replaced by edges specifically
designed to grow brake pad regeneration process
USE ONROAD
ACCESSORIES P30 & SM1 pads
Tubi TX e raccordi RX
WARNING : Always combine new BRAKING pads with the new disk.
Run in as per mounting instructions.
Outer Diameter  260,00
Braking Surface Height  35,00
Inside Diameter   121,50
Thickness   4,00
No. Of Holes   5,00
Bolt Pattern   142,00
Holes Diameter   10,50
Holes Type  Countebore
Floating   Semi floating
Outline   Wave
Outer Ring Type  Lightening holes
Finishing  Painting
Material  Aisi420
Carrier Surface Treatment  Nothing
