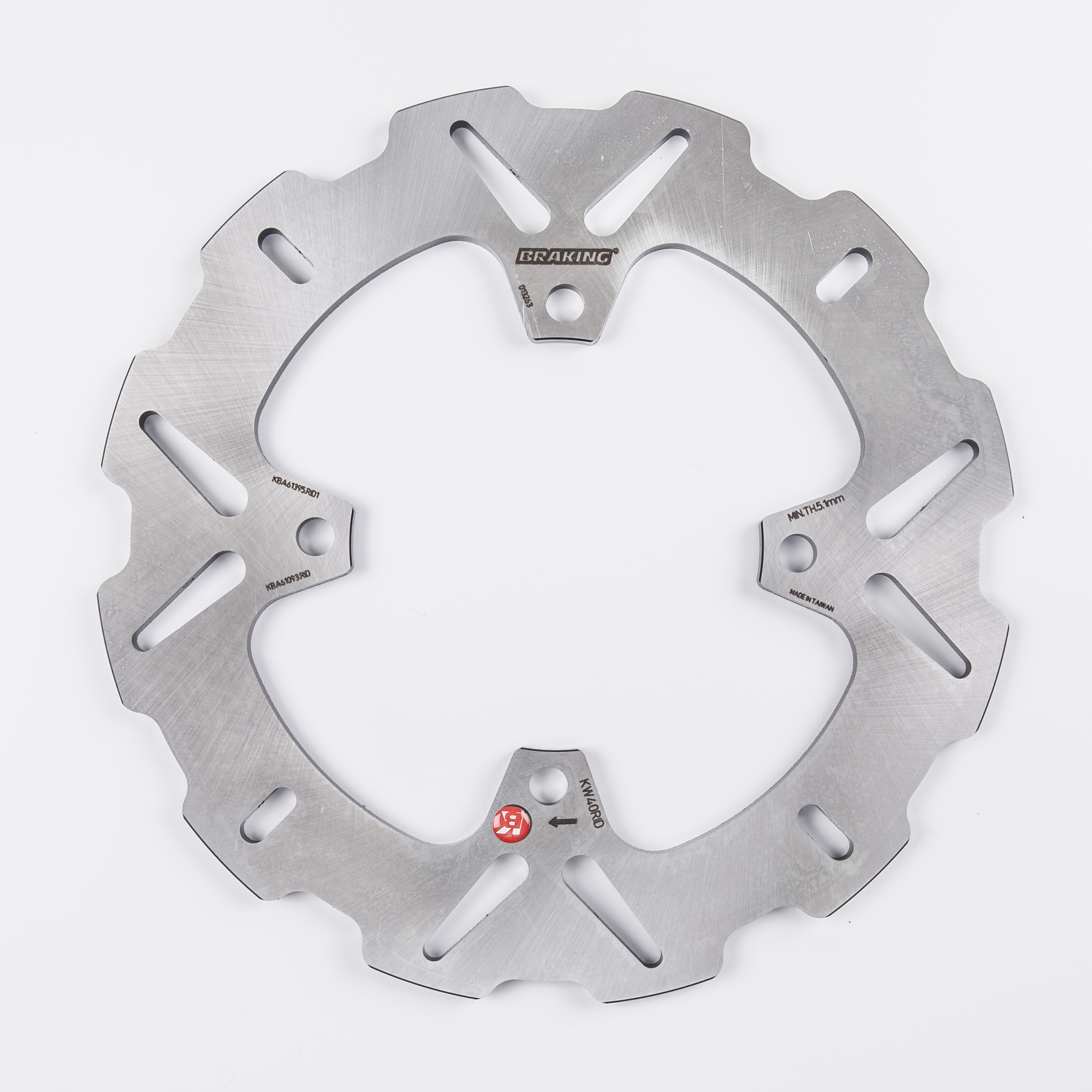

Z1000(14-21) Braking wave disc fix Rear-R

TYPE ONROAD DISK
SERIES W-FIX
DESCRIPTION Traditional WAVE® fix disk for both front and rear applications.
Replacement of original OEM disk.
PART NUMBER WF71XX front disk - WF75XX rear disk -
TECHNICAL FEATURES AND
BENEFITS
more braking grip > highly reactive
less weight > better handling
high heat dissipation > stable power in all conditions
HOW DOES IT WORK? Outer and inner diameter of the disk have a non-round design that
enables better radial expansion of the rotor under extreme heat
conditions. Moreover piercing holes are replaced by edges specifically
designed to grow brake pad regeneration process.
USE ROAD
ACCESSORIES CM55 - CM56& SM1 PADS
TX - RX LINES & FITTINGS
WARNING Always combine new BRAKING pads with the new disk.
Run in as per mounting instructions.

DETTAGLI / DETAILS


Outer Diameter  250,00
Braking Surface Height  36,50
Inside Diameter   110,50
Thickness   6,00
No. Of Holes   4,00
Bolt Pattern   130,00
Holes Diameter   10,50
Holes Type  Deburred
Floating   Fixed
Outline   Wave
Outer Ring Type  Lightening holes
Finishing  Painting
Material  Aisi420
Carrier Surface Treatment  Nothing
