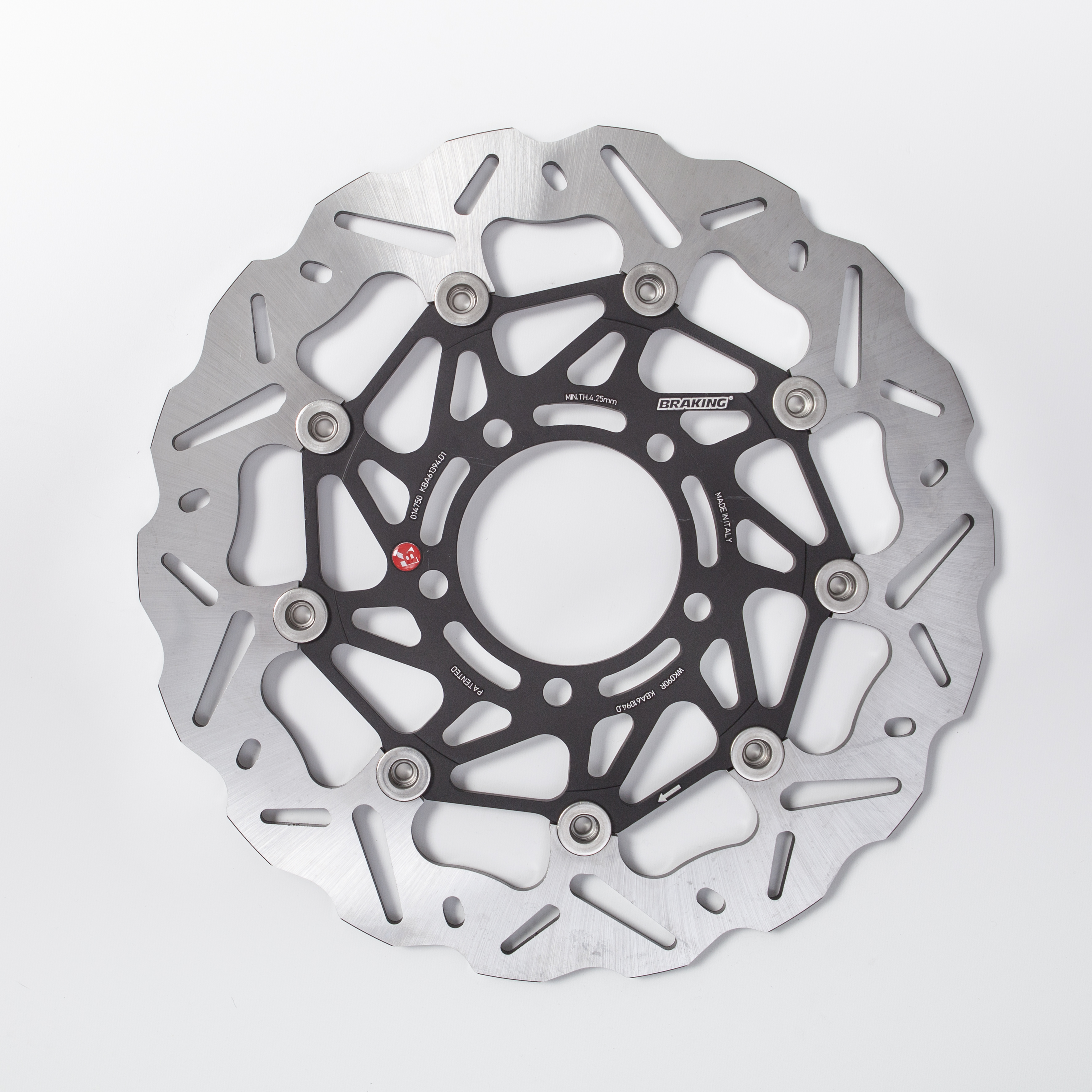

Z1000(14-21) Braking brake disc wave floating Front-R

BRAKE DISK WAVE FLOATING AL-HUB SK2 Ø310

TYPE : ONROAD DISK
SERIES : SK
DESCRIPTION : After 5 years of successful results and 7 winning world titles, Braking
launches the second generation of their SK.
SK2 has a directional carrier, which is 9% lighter than the previous
one, a new profile for its outer ring thanks to cooperating with the
strongest teams in the world, and a directional seat with a 14° angle .
SK2 has 2 versions: high and low outer ring, according to the specific
application.
PART NUMBER : WKXXXL/R
TECHNICAL FEATURES AND BENEFITS :
more braking grip > highly reactive
less weight > better handling
high heat dissipation > stable power in all conditions
HOW DOES IT WORK? outer and inner diameter of the disk have a non-round design
that enables better radial expansion of the rotor under extreme
heat conditions. Moreover piercing holes are replaced by edges
specifically designed to grow brake pad regeneration process.
USE ROAD AND ROAD RACE
ACCESSORIES CM55 & P1R & CM66 PADS
MC94 – MC74 MASTER CYLINDER
TX - RX LINES & FITTINGS
WARNING The brake disk is directional. Verify that it mounts correctly by
checking the rotational direction marked on the carrier.
Always combine new BRAKING pads with the new disk.
Run in as per mounting instructions.

DETTAGLI / DETAILS


Outer Diameter  310,00
Braking Surface Height  31,50
Inside Diameter   80,50
Thickness   5,00
No. Of Holes   5,00
Bolt Pattern   100,00
Holes Diameter   10,50
Holes Type  Deburred
Floating   Floating
Outline   Wave
Outer Ring Type  Lightening holes
Finishing  Painting
Material  Aisi420
Carrier Material  AL5754
Carrier Surface Treatment  Hard Anodization
