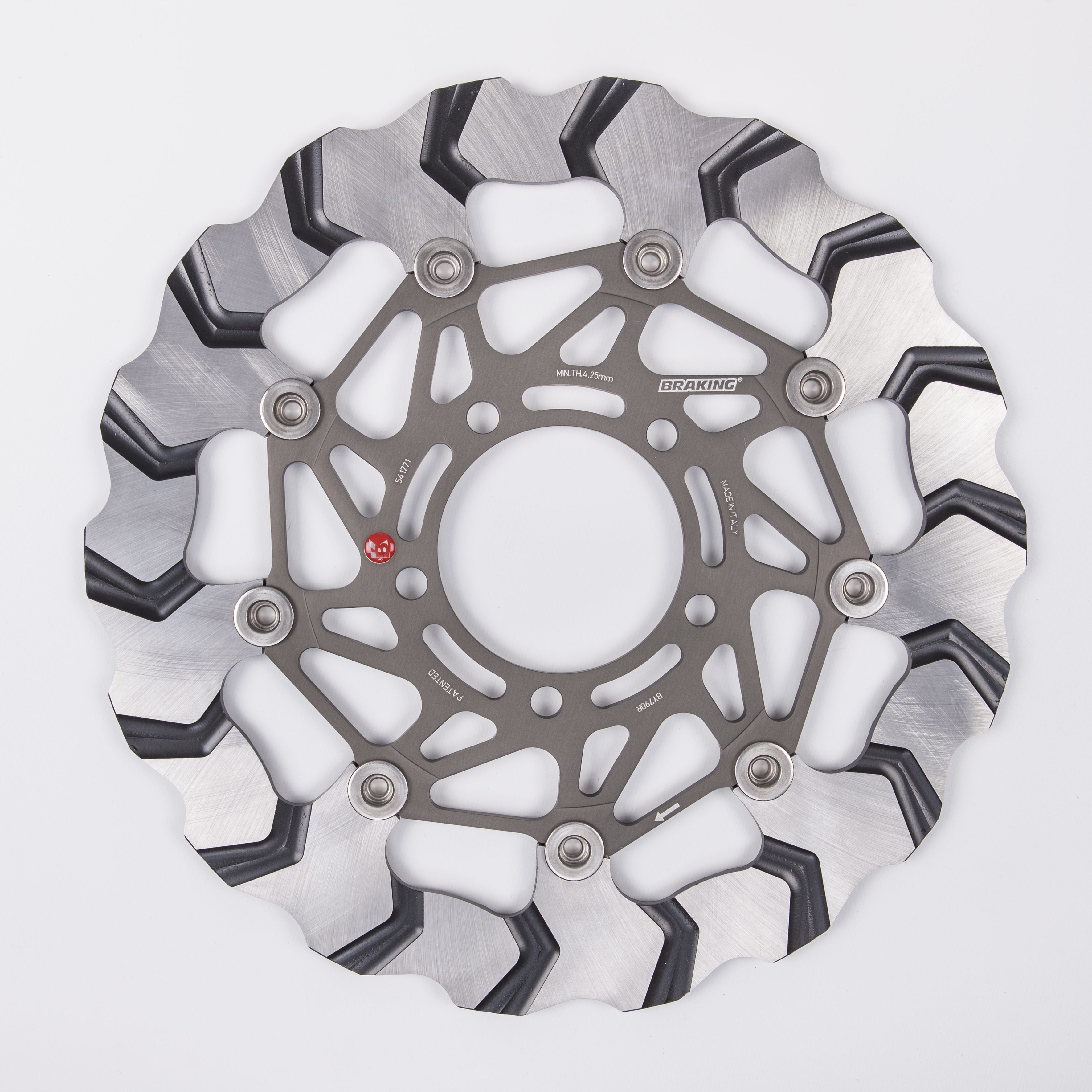

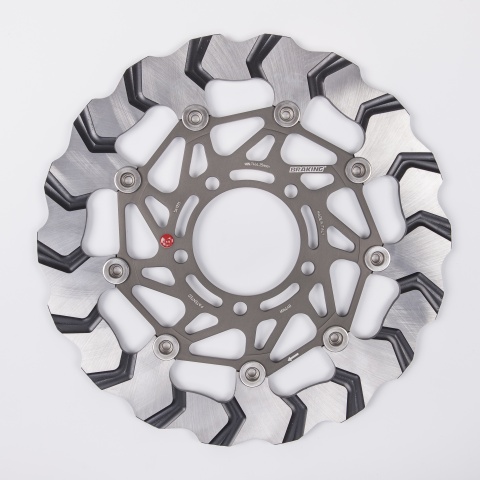

Z1000(14-21) Braking brake disc BATFLY floating Front-R

TYPE : ONROAD DISK
SERIES : BATFLY STRADA
DESCRIPTION : After testing it for years in the racing world, Braking launched the
new BATFLY® rotor.
BATFLY® STRADA offers a directional carrier, lighter than the previous
version - 9 instead of 12 rivets, a directional seat with a 14° angle and
a new outline for the self-ventilating outer ring, which improves the
heat dissipation on the ring.
This rotor is the result of cooperating with the strongest teams in the
world, thus creating a unique product as for brake power progression.
Thanks to this new light version, BATFLY® STRADA’s weight is now
very similar to the SK2 one.
PART NUMBER : BY7XXL/R
TECHNICAL FEATURES AND BENEFITS :
more braking grip > highly reactive
less weight > better handling
high heat dissipation > stable power in all conditions
self ventilating > stable power at high temperatures
very high pad-disk contact pressure > highest braking grip
light weight > better handling
HOW DOES IT WORK?
outer and inner diameter of the disk have a non-round design
that enables better radial expansion of the rotor under extreme
heat conditions. Moreover piercing holes are replaced by edges
specifically designed to grow brake pad regeneration process
Alternative grooves on the two surfaces of the disk create a
selfventilation mechanism. Mud and dirt are also easily removed
from braking surface.
USE RACE
ACCESSORIES P1R PADS
MC94 – MC74 MASTER CYLINDER
TX - RX LINES & FITTINGS
WARNING The brake disk is directional. Verify that it mounts correctly by
checking the rotational direction marked on the carrier.
Always combine new BRAKING pads with the new disk.
Run in as per mounting instructions.

DETTAGLI / DETAILS


Outer Diameter  310,00
Braking Surface Height  35,50
Inside Diameter   80,50
Thickness   5,00
No. Of Holes   5,00
Bolt Pattern   100,00
Holes Diameter   10,50
Holes Type  Deburred
Floating   Floating
Outline   Wave
Outer Ring Type  Batfly
Finishing  Painting
Material  Aisi420
Carrier Material  AL5754
Carrier Surface Treatment  Hard Anodization
